6 mm (1/4") Pro-Flo SHIFT Series Bolted Plastic Pump PS25

Combining elegant simplicity with maximum performance and efficiency that end users have come to depend on for more than 20 years, the 6 mm (1/4") Wilden® Pro-Flo® SHIFT Series PS25 Bolted Plastic AODD Pump offers improved flow rates and an optimized liquid path that reduces internal friction, maximizing output and extending diaphragm life. The Pro-Flo SHIFT PS25 pump provides the flexibility, reliability, performance and dependability required in challenging dosing and batching applications.

• Simple and durable design
• Longest-lasting wear parts
• Lube-free operation
• Bolted construction for superior containment
• High suction lift
• Ease of operation and maintenance

EOMs

Flyers

Dimensions

Note: For additional information, please refer to the PS25 Bolted Plastic Manual (EOM).

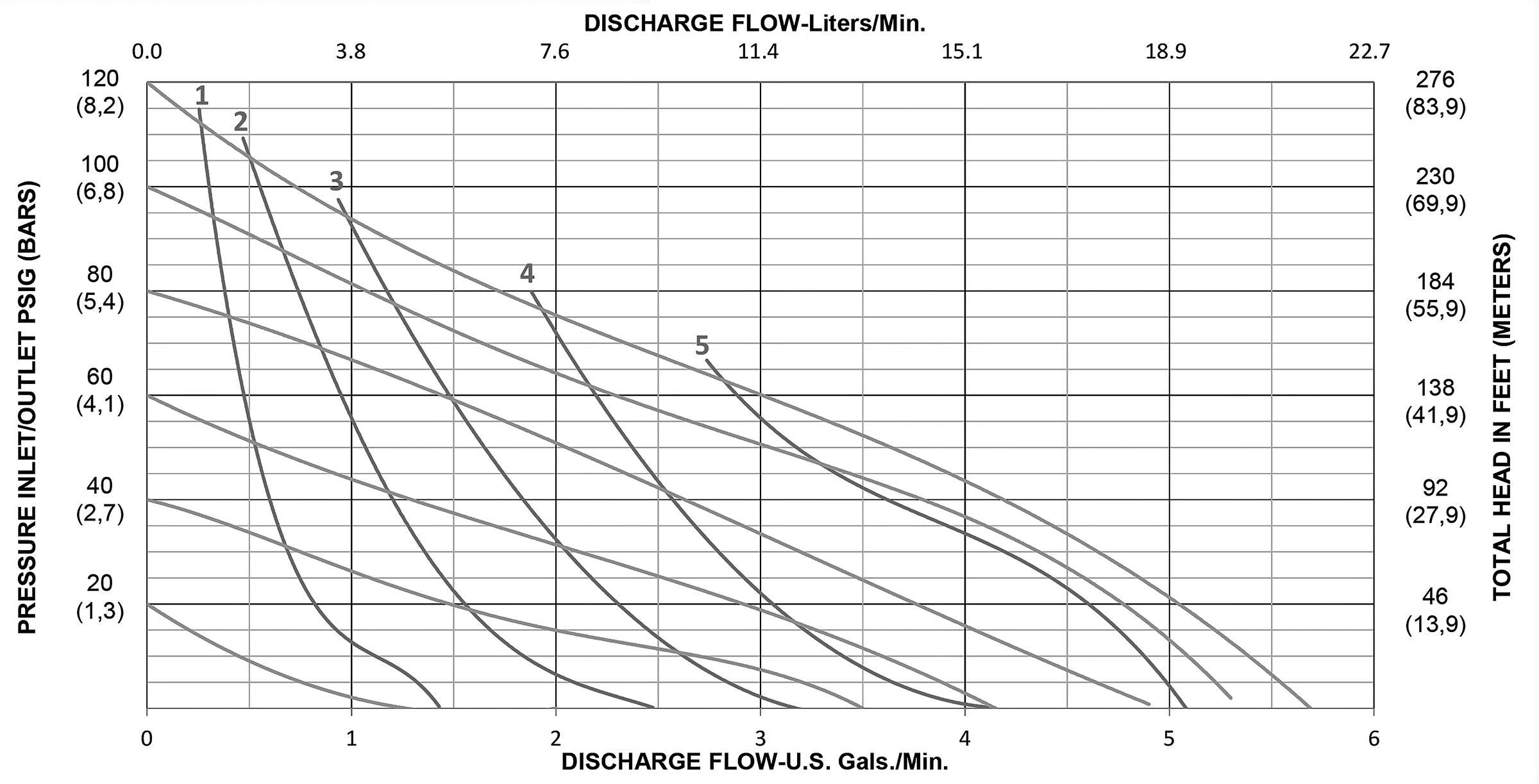

Flow Curve – Rubber-Fitted

AIR INLET

• 1/4" FNPT

LIQUID INLET

• 6 mm (1/4")

LIQUID DISCHARGE

• 6 mm (1/4")

CONNECTION TYPE

• FNPT/FBSPT (Threaded)

MAX SUCTION LIFT CAPABILITY

• 4.2 m (14') Dry, 8.5 m (28') Wet

MAX FLOW RATE

• 21.6 lpm (5.7 gpm)

MAX PRESSURE

• 8.3 bar (120 psi)

MAX DIAMETER SOLIDS

• 1.6 mm (1/16")

DISPLACEMENT PER STROKE ^*

• 0.0397 L (0.0105 gal)
^* 1 cycle = 2 strokes

Wetted Housings

Non-Wetted Housings
